Busway System

The data center busway system is a common term for the power supply and distribution system of the end busbar in the data center. In recent years, with the rapid development and higher demand of data center construction, intelligent small busbar systems have gradually been applied in the end power distribution of computer rooms. They have the characteristics of low current, convenient plugging, and high intelligence. Plug in plug-in boxes distribute power to PDUs in each cabinet. Monitoring modules can be installed in the starting box and plug-in box to upload data to the dynamic environmental monitoring center. Our company closely follows market trends and combines our own industry experience and advantages to launch an intelligent small busbar for computer rooms: (track type small busbar), which meets the usage needs of market customers.

Buswa: (new concept for data centers)

Generally, the current carrying capacity ranges from 100A to 400A

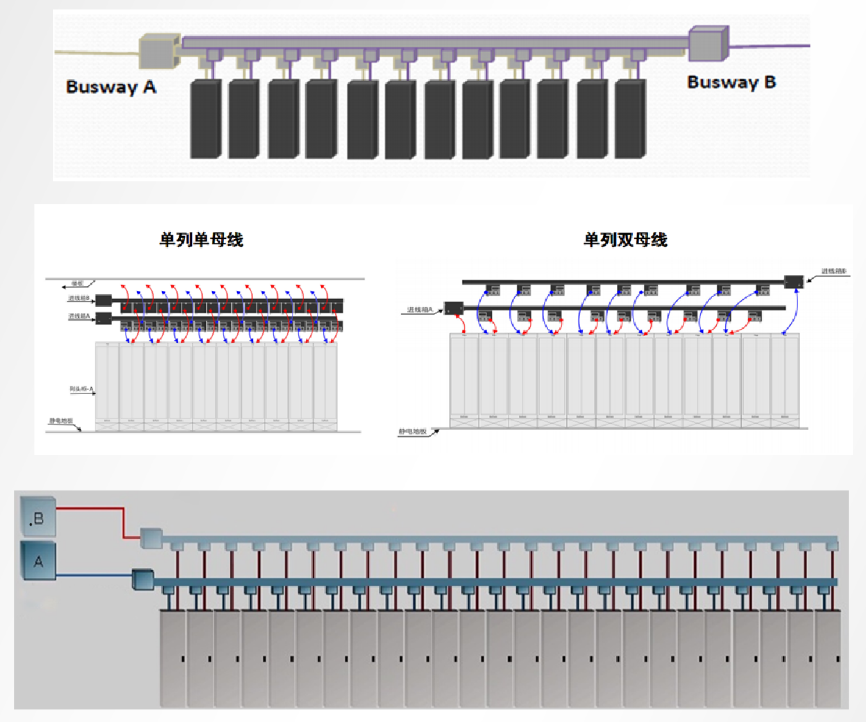

Mainly used inside the computer room to supply power to each cabinet, with one or two busbars per column, replacing the column head cabinet solution

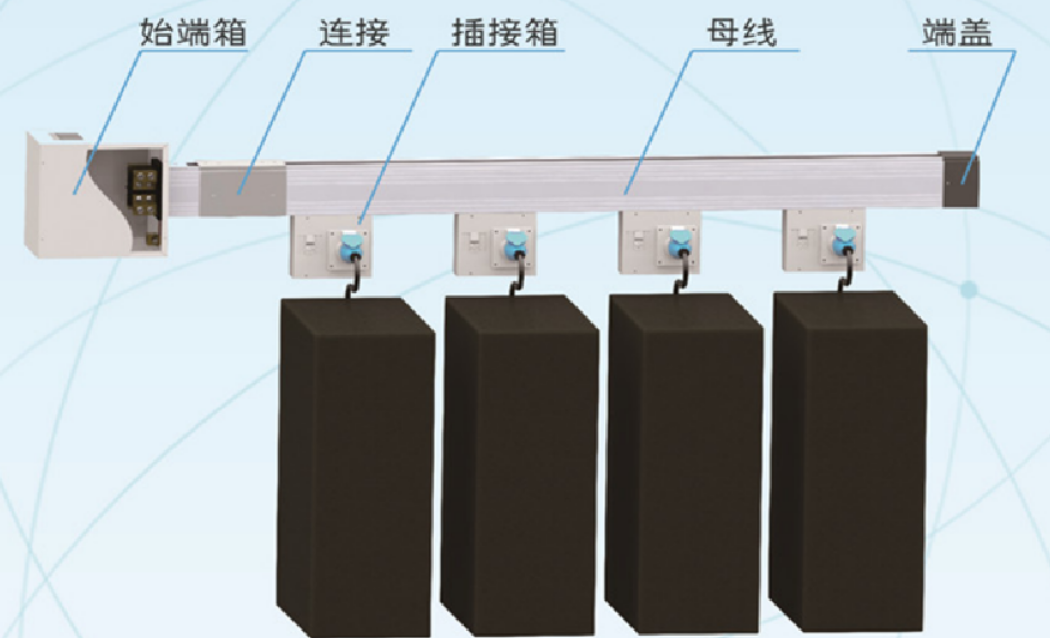

Composition :

The outer shell of the bus duct is made of extruded aluminum profiles, which comply with the IEC60439-2 industry standard. The shell can be used as a PE wire, and the protection level of the bus duct is IP3X or above: 100A, 160A, 250A, 320A, 400A, 500A, 600A The bus duct can be conveniently added, reduced, or replaced with plug-in box units at any position as needed, plug and play, and online plugging and unplugging of plug-in boxes can be achieved without power outage.

Features

• Protective grounding

An independent grounding copper bar is installed on the top surface of the busbar, which is more reasonable. In addition, copper bars and aluminum magnesium alloy shells can serve as composite protective grounding conductors, making safety protection more reliable.

• Security performance

Due to the placement of the grounding copper bar on the top surface, it ensures that when the plug is inserted into the busbar, the grounding contact block contacts the grounding bar first, and then the conductive contact block contacts the conductive bar; When removing the plug, ensure that the contact block is disconnected from the conductor first and then from the grounding wire, which is safer.

• Insulation protection

The busbar has higher insulation safety, and the insulation protection of the conductive busbar adopts dual insulation protection of insulation material insulation and air insulation.

• Busbar structure

The product has a simple structure, easy component processing, no special requirements for copper materials, and low manufacturing costs.

• Bus connection

Simple and convenient, no need for specialized tools. The operation is intuitive, the connection is stable and reliable, and the technical requirements for installation workers are not high, saving the cost of purchasing specialized tools and reducing installation costs.

• Data cable layout

A cable tray is installed at the bottom of the busbar to facilitate the layout of monitoring data cables.

• Heat dissipation

The large area of conductive copper bars in contact with air improves the heat dissipation effect of the conductive copper bars.

• Expand or change

The product system is easy to install and disassemble, making it convenient to expand and modify the existing busbar trunking system.

Busway Monitoring System

In response to the monitoring requirements of intelligent small busbars in data centers, our company has launched the OLT-MB series small busbar monitoring solution, which includes an acquisition module, supporting accessories, and monitoring system. The solution can monitor various parameters during the operation of the busbar and issue alarms in case of faults to ensure stable system operation.
